Product Description：
Name：Rrefrigerator and freezer Test Simulators and Filler Packages for ANSI/ASHRAE Standard 72-2005
Type：BND-RT03
it is North American Commercial standard refrigerator and freezer test package for freezing load testing according to ANSI/ASHRAE Standard 72-2005.
This ensures that your refrigeration units are tested under conditions that closely approximate real-world usage.
Definitions
Filler Material
Description: Material consisting of water, or a 50/50 mixture (±2%) of distilled water and propylene glycol, or wood blocks with an overall density not less than 480 kg/m³ (30 lb/ft³).
Usage: Used for filling refrigerator spaces not occupied by test simulators.
Filler Package
Description: A container with filler material that closely approximates food product characteristics.
Usage: Used to fill the spaces between test simulators for product mass.
Loading Procedures
1.Test Simulators
Description: Test simulators have thermal characteristics similar to most foods, which typically contain 80% to 90% water, fibrous material, and salt.

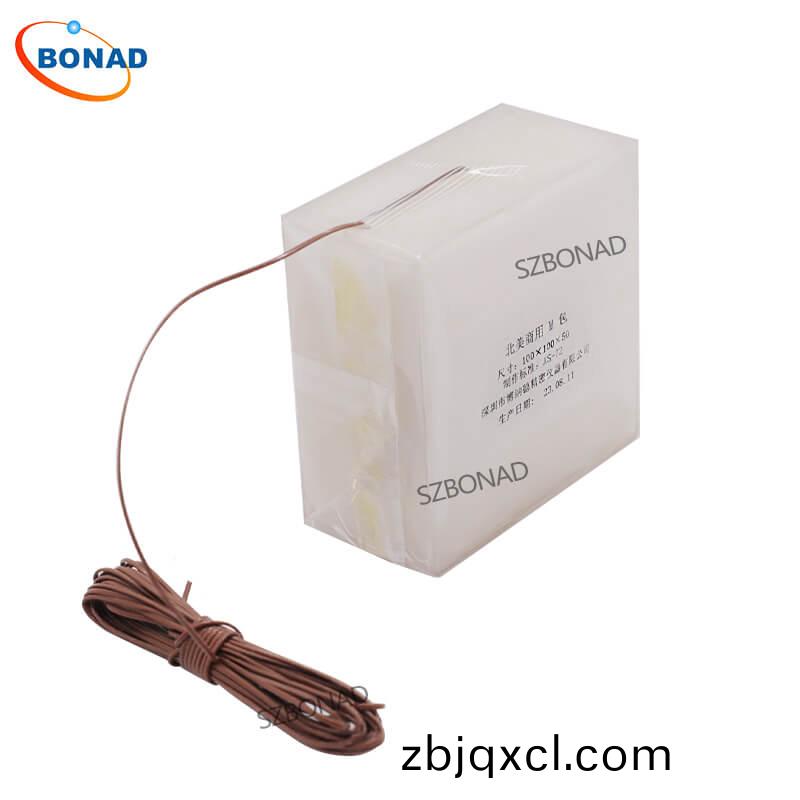

Specifications: The simulator is a plastic container (such as polyethylene) of at least 473 ml (1 US liquid pint) volume, filled with a sponge material saturated with a heat transfer solution consisting of a 50/50 ±2% mixture (by volume) of propylene glycol and distilled water.
Usage: Used as a standard measuring device in tests.
2. Filler Packages
Description: Filler packages used as product mass, consisting of containers with filler material that closely approximate food product characteristics.
Placement: These packages should fill between 70% and 90% of the refrigerator's net usable volume, uniformly occupying space from front to rear without protruding beyond any load line.
Shelf Loading: Tilt-down shelves on meat cases should be loaded with a single layer of filler packages occupying between 20% and 90% of the net usable volume.
Test Filler Package Size:
| Size（mm） | Tolerance of Size | Requirement for volume |
| 52 × 100× 100 | ±2mm | ≥473ml |
